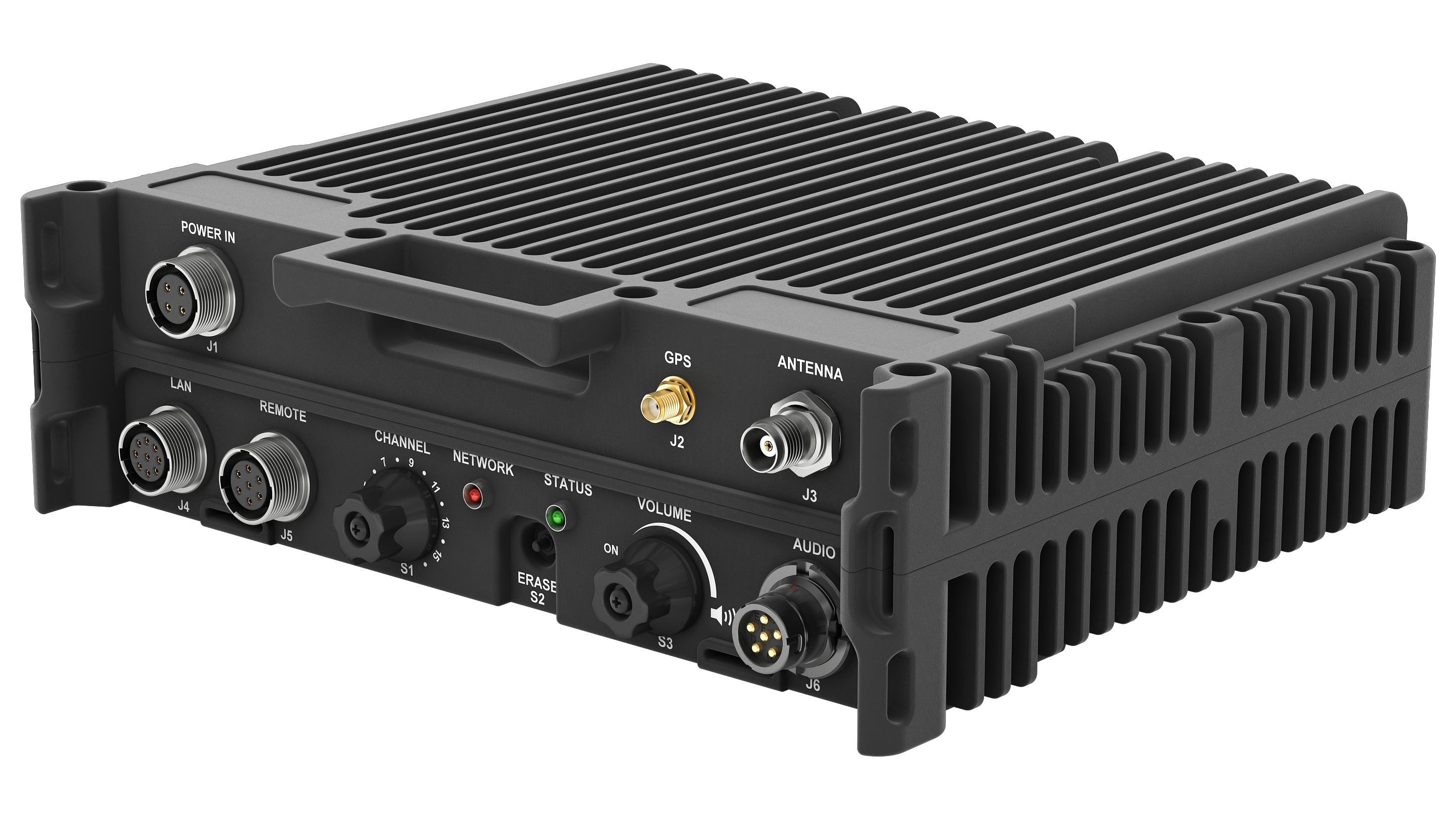

GR-8520VU High Capacity Data Radio (HCDR)
Tactical Networking IP Radio Delivering Ultra-High Datarates!
The Glocom GR-8520VU VHF/UHF High Capacity Data Radio (HCDR) provides ultra-high datarates of up to 4Mbps for the transmission of high-resolution voice, video and embedded Blue Force Tracking (BFT) over a truly decentralized mobile ad-hoc network (MANET).
With frequency coverage from 225MHz to 450MHz, the HCDR offers a modular range of configurations geared to match the specific operational requirements of any mission, including vehicle configurations, as well as both airborne and marine radio sets. Featuring an SDR design that supports various waveforms, the HCDR’s wireless resources are dynamically utilized between the network members, providing end-to-end IP connectivity for voice, video and data.
Modern warfare - With its small form-factor, ultra-high bandwidth and advanced capabilities, the HCDR serves as the backbone for secure data network and Ethernet services in the modern battlefield. The solution is ideal for deployed and maneuvering tactical platforms throughout multiple echelons, from brigade level to platoon level.
Vast data distribution - As requirements for data dissemination continue to rise, the HCDR has emerged as a powerful C4I enabler, with capabilities for voice, BFT, IP data and live multicast video. The HCDR expedites military missions by ensuring agile and secured MANET without hindering tactical operations.

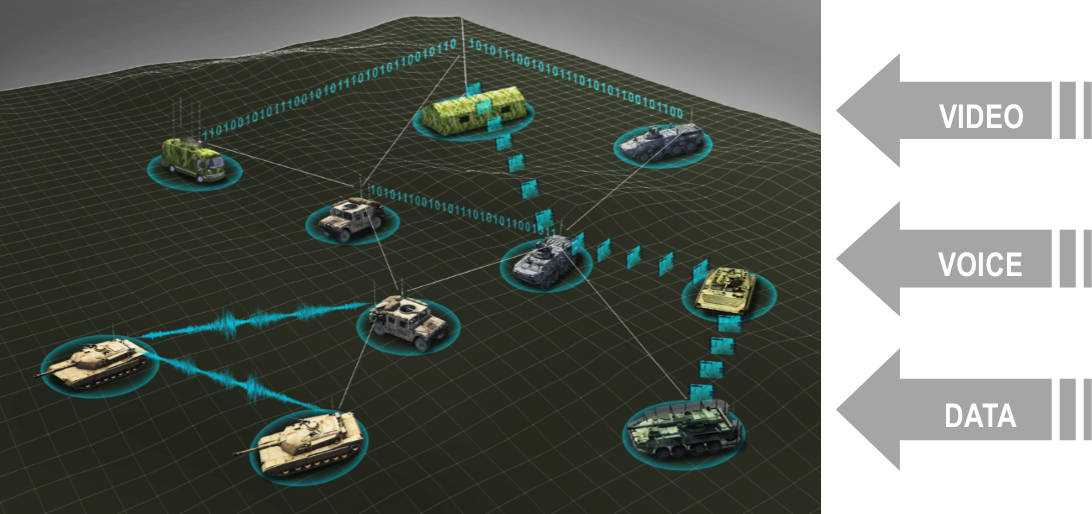

MANET
Network-centric communications - The HCDR employs advanced algorithms and ultra-high bandwidth to maximize performance throughout the 50-member network.
Video and voice streaming
Intelligent, Self-managing, Mobile, Ad-Hoc networking

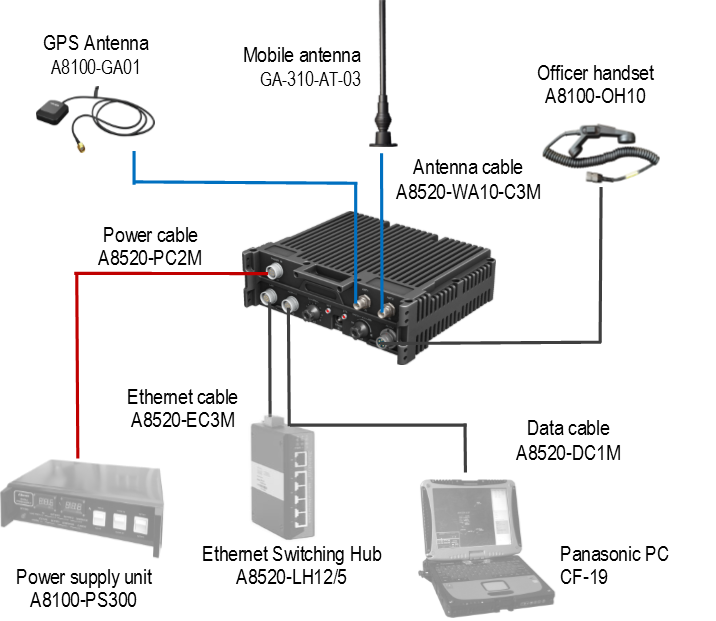

Configuration of GR-8520VU Mobile Set
Mobile Systems
Rugged structure tactical handset, easy to operate, Water-proof and moisture-proof.

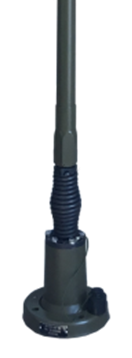

This is 100MHz~400MHz whip antenna. The antenna is composed of three parts: antenna base, vibration absorbing device, antenna sections. It can be equipped with GR-310/350/510/520 radio sets.
This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting or screw mounting. It's useful for mobile application with GR series radios.

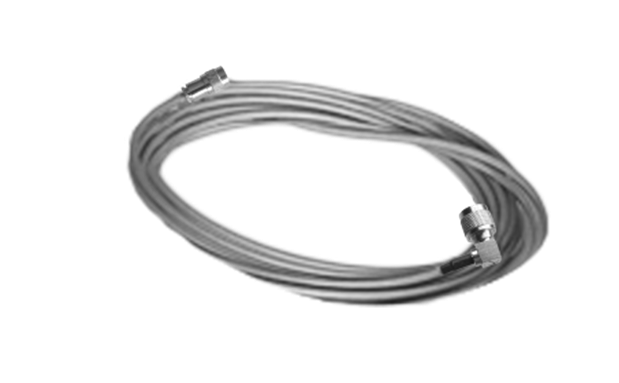

This cable is the antenna cable to connect GR-8520VU and GA-310-AT-03 Antenna.
This cable is the antenna cable to connect GR-8520VU and GA-310-AT-03 Antenna.

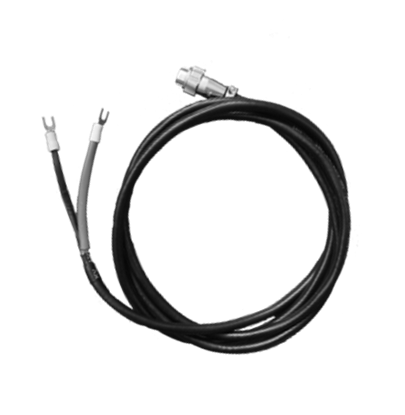

Is an rugged flexible cable with 4 way connector/2m length used to supply power to transceiver. It is connected between GR-8520VU’s J1 connector and PSU.

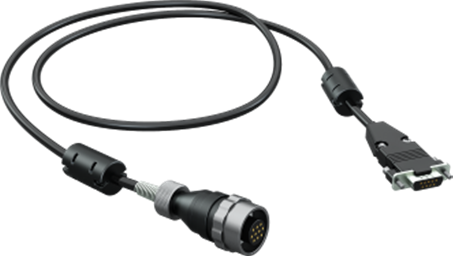

This is RS-232C data communication cable for GR 8000 series radios. It is used for data communication, radio programming and radio control by computer etc.
Tactical headset adopts structure of head ring soft strap, it is audio terminal. It has the features of small in dimension, light in weight, good water proof performance, high environment adaptability.

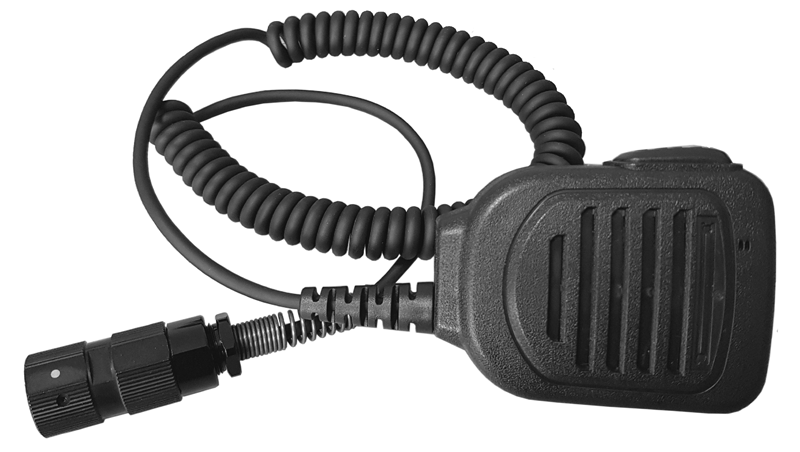

This speaker microphone amplifies radio audio output for manpack, vehicular and base station applications. It can be connected to audio jack on manpack radio.

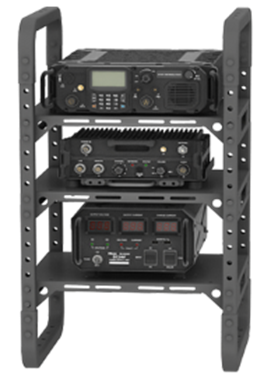

This is a set of mobile installation kit. It can be used to install GR series radio system into various kind of vehicles, ships or stationary. It is very simple to install or uninstall on the vehicles.

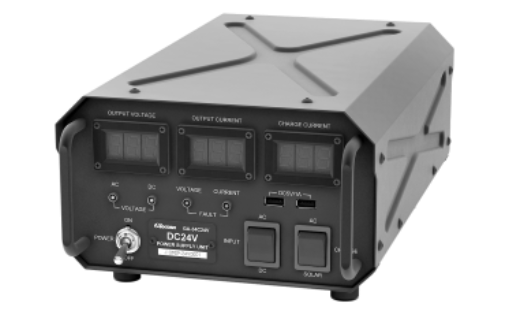

This is 320W AC-DC/DC-DC converter to supply power into GR-series mobile radio system. It supports very high efficiency, over-voltage protection, polarity protection.
This is a field reference user manual for GR-8520VU radio system.
