GR-8150HV HF/VHF Manpack Radio
Update version of GR-8100HV
[Key Features]
3G Automatic Link Establishment
Wideband Waveform
SWaP Optimized
Embedded Applications
Bluetooth/RS-232C/Ethernet
Smallest, Lightest and Fastest HF/VHF Manpack Radio in the World!

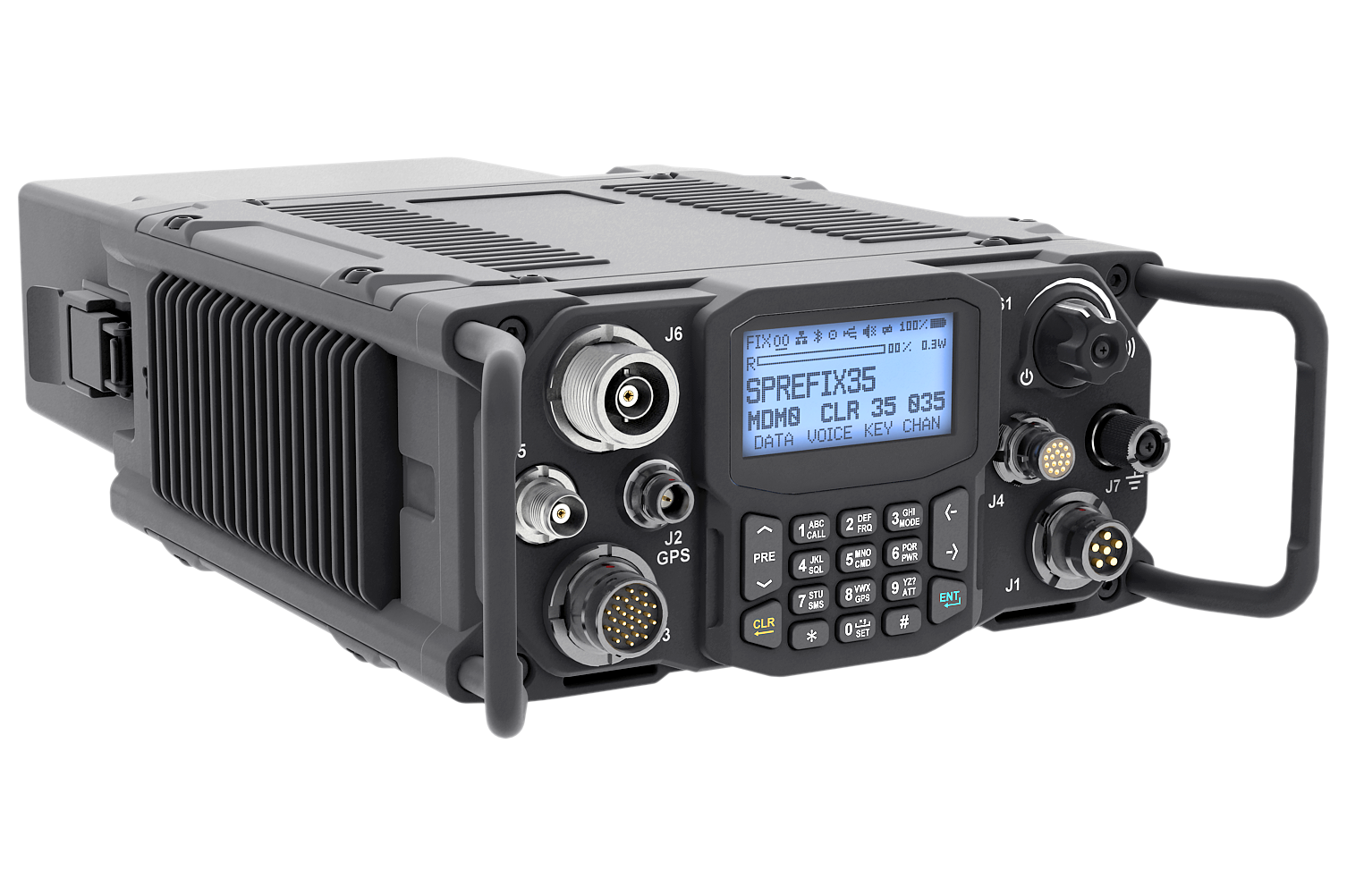

The Glocom GR-8150HV HF/VHF manpack radio system reaches the highest level in wideband data performance and interoperability with fielded GR-8150HV manpack radio- to deliver information superiority on today’s battlefields. It provides 20W HF and 10W VHF on the power of a single battery, and HF bandwidths from 3 to 24 kHz - with data rates of up to 76.8 kbps.
No matter the deployment scenario, the GR-8150HV ensures the transmission and receipt of critical communications. And with ultra-robust 3G waveforms, it provides last-ditch voice and SMS messaging in channels where legacy waveforms don’t work.
Incorporating enhanced anti-jamming measures and embedded AES encryption, all GR-8150HV transmissions are completely secure and reliable. The radio also features high performance automatic link establishment and data link protocols to provide fast, reliable linking and error-free data transfer - even under the most challenging channel conditions.
In addition to its array of embedded capabilities—which also include an internal GPS receiver - the GR-8150HV features a Software Defined Radio (SDR) architecture, which allows it to host future capabilities. Combined with its incredible processing power, it will continue to be state-of-the-art well into the future.
Providing all of these features in a form factor that’s more compact and 30% lighter than previous HF manpack radio, the GR-8150HV enables today’s warfighter to take on tomorrow’s missions.
Advanced Design Compared to GR-8100HV Manpack

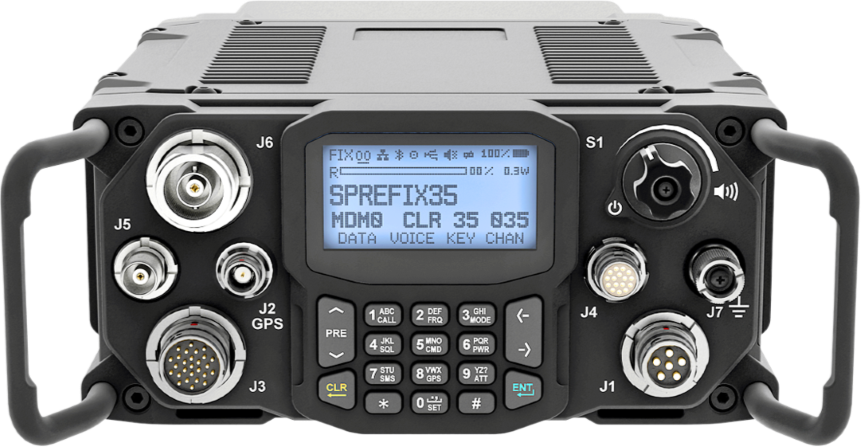

The radio is the upgraded version of GR-8100HV HF/VHF Manpack Radio. It supports antenna sockets both for HF/VHF communication so that soliders easily switch the frequency band in no time without any need for antenna replacement. J4 socket is also updated to provide users more convenient and reliable, robust data interface.
3G Automatic Link Establishment (3G ALE)
The radio features high-performance 3G Automatic Link Establishment which supports reliable linking even under the challenging channel conditions. Even if you have no experience in HF communication, this radio allows you easily search the open channel band and fastly establish a reliable link for high-speed data transmission. If available, 3G ALE and data link protocols search clear band of up to 24kHz and provide fast, error-free data transfer of 51.2kbps data rate in the extreme terrain and radio environment.
SWaP Optimized

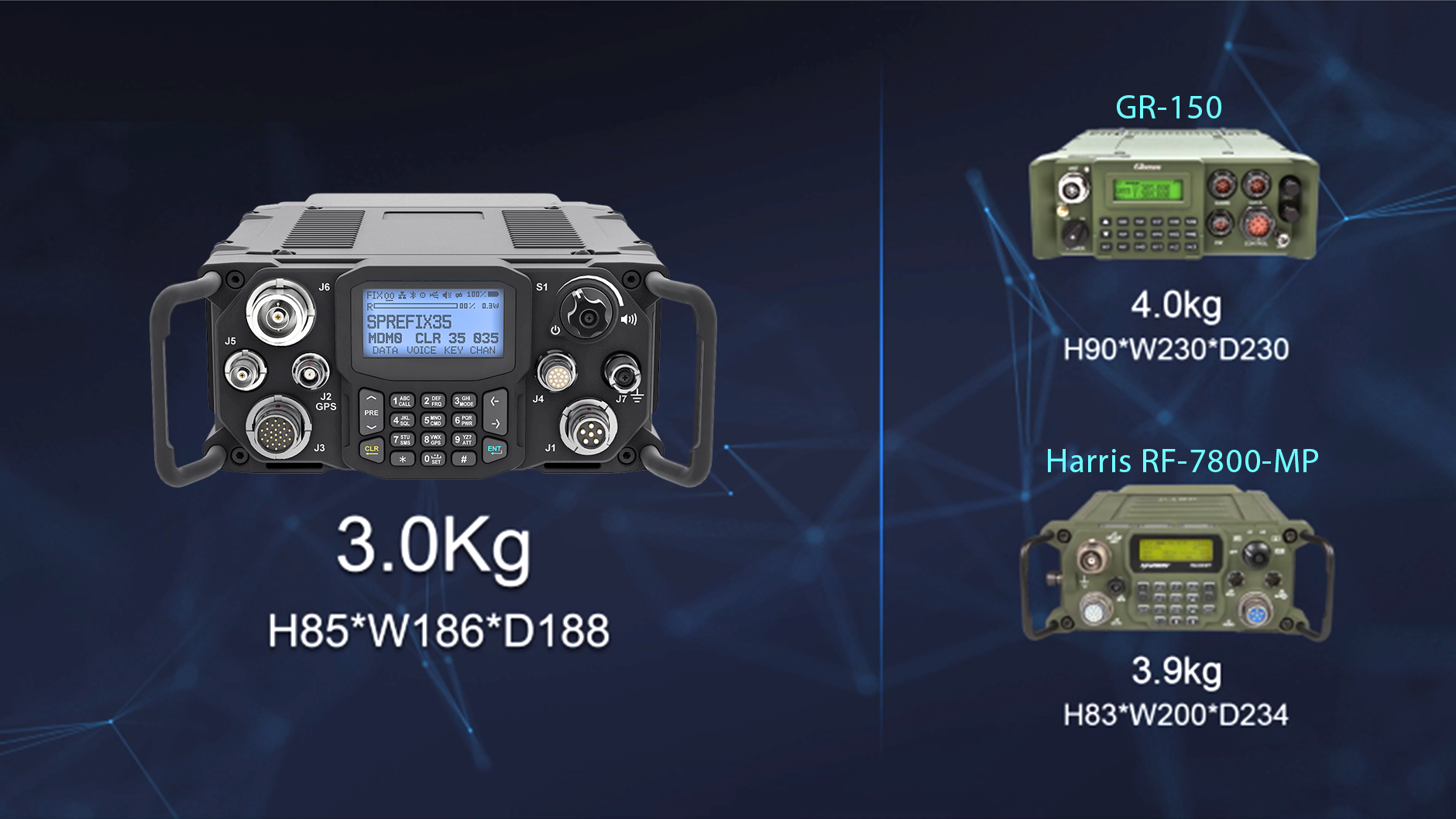

Weighing 3kg, GR-8150HV is the smallest, lightest and fastest HF/VHF wideband manpack ever, delivering reliable high-speed data up/down the echelon exactly when and where it’s needed. This SWaP optimized manpack provides 20W HF and 10W VHF on the power of single battery.
Embedded Applications
GR-8150HV Manpack radio provides embedded applications such as blue force tracking(BFT), SMS messaging and signal intelligence.
■Blue Force Tracking
The radio also includes enhanced internal GPS providing automatic position reporting for full situational awareness. The embedded GPS receiver ensures accurate Position Location Information for enhanced Situational Awareness.
■SMS Messaging

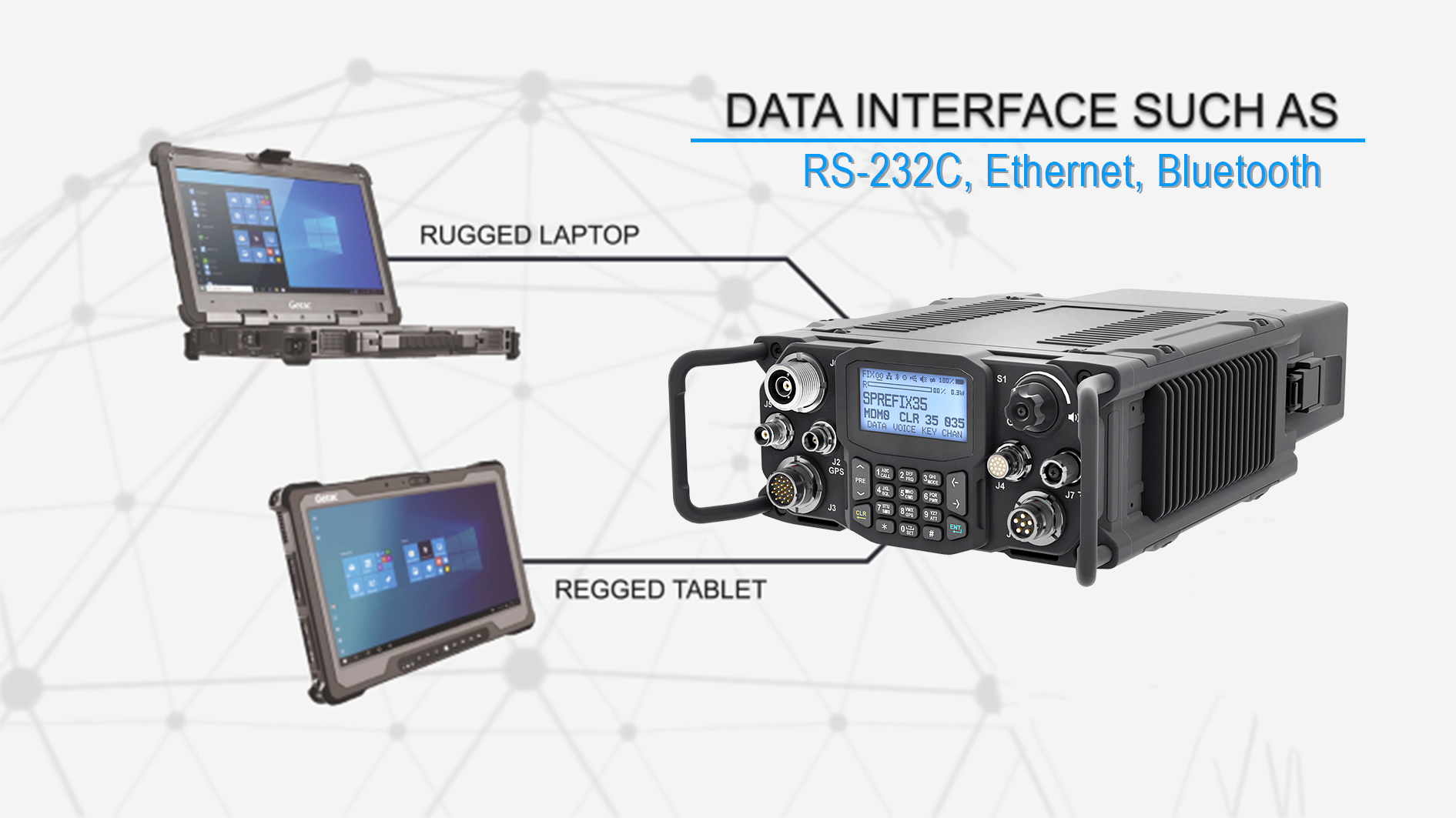

Embedded SMS messaging makes it easy to send/receive messages between soldiers without any assistant Windows/Android applications. The radio also provides various types of data interface such as RS-232C, Ethernet and Bluetooth enabling users to use various types of data terminals including rugged PC and tablet for tactical data communication.
■Signal Intelligence
GR-8150HV’s powerful anti-jamming ability provides soldiers with free channel search under extreme radio environment with the help of its embedded signal intelligence.

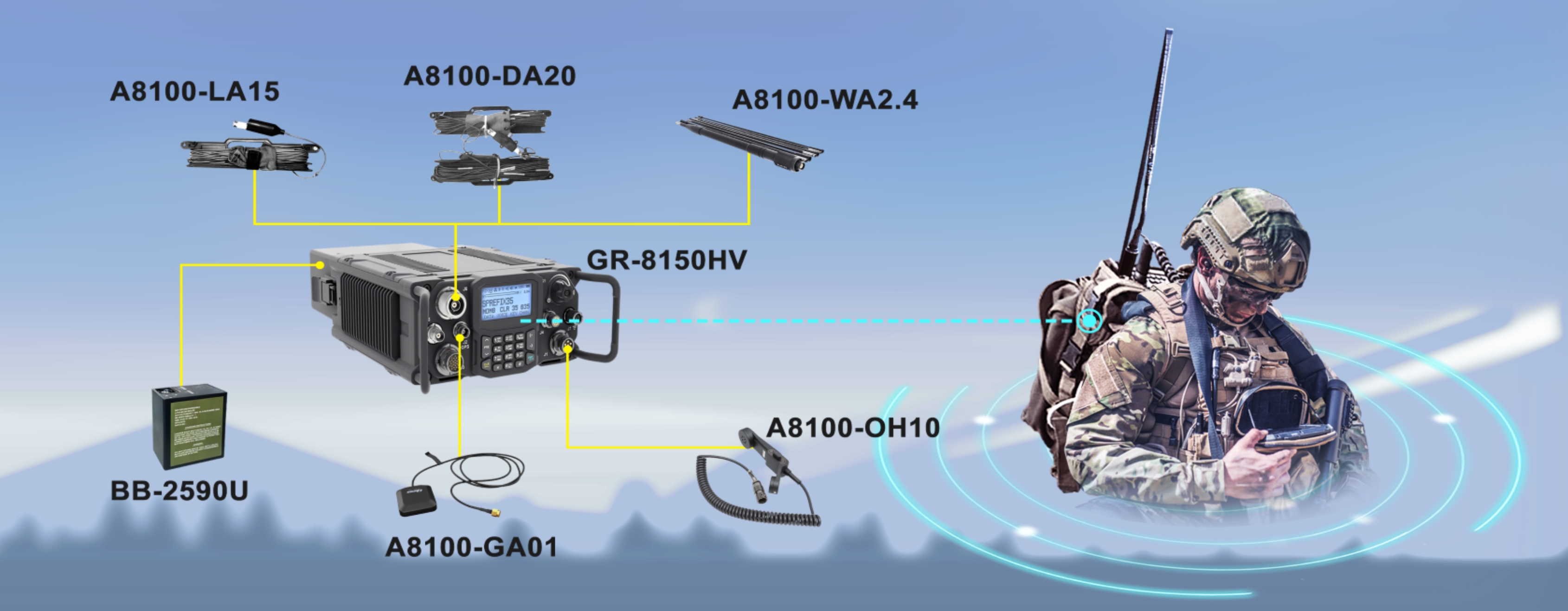

Configuration of GR-8150HV Radio Set
Rugged structure tactical handset, easy to operate, Water-proof and moisture-proof.
This antenna is vertically polarized omnidirectional antenna. The antenna is composed of three parts as plug, direction changing parts, and antenna sections.
This antenna can be used for communication on actual combat. This antenna is used for HF radio set or long distance emergency communication. It has the features of high radiation efficiency, easy carrying and installation.
This antenna can be used for communication on actual combat. This antenna is used for stationary HF radio set or long distance emergency communication.

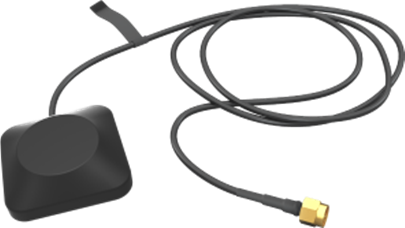

This is high gain, low loss, active, extra low current consumption, small size GNSS antenna. It supports SMA plug and magnetic mounting or screw mounting. It's useful for mobile application with GR series radios.
Battery box for BB-2590/U series batteries for GR-8100 manpack radio system. Waterproof and moisture-proof. This battery box is fully compatible with BB-2590/U size battery system.
battery with instantaneous start up. (L)127mmX(W)61mmX(H)112mm , 1.3Kg, 14.4 or 28.8VDC
This is 1 bay battery charger for BB-2590/U. Up to 2 batteries may be connected for simultaneous processing, and disconnected from any channel during processing.
Earth braid, 1.5m.
This is a user manual for GR-8150HV radio system.
Tactical headset adopts structure of head ring soft strap, it is audio terminal. It has the features of small in dimension, light in weight, good water proof performance, high environment adaptability.
This speaker microphone amplifies radio audio output for manpack, vehicular and base station applications. It can be connected to audio jack on manpack radio.
1.6~30MHz, 40W, Impedance:50Ω, Contact resistance: ≤120mΩ, Length:2400mm, Draw back length: 365mm, ≤0.7Kg, Interface: BNC fixed with threading sheath.
This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting or screw mounting. It's useful for mobile application with GR series radios.
This is RS-232C data communication cable for GR8000 series radios. It is used for data communication, radio programming and radio control by computer etc.
This is a rucksack for GR series manpack radio system. It is very convenience for soldier to carry radio with all accessories. It can keep antenna, batteries, handset, headset etc…
This cable is the Ethernet cable to connect radio and Ethernet port or network hub.
This is 2 bay battery charger for BB-2590/U. Up to 2 batteries may be connected for simultaneous processing, and disconnected from any channel during processing.
This software application allows user to enter frequency, mode, encryption code, ALE network information and other parameters into a Windowsbased computer program and save it to a file.
This software application provides reliable exchange of text messages, files and pictures through networked data terminals.
