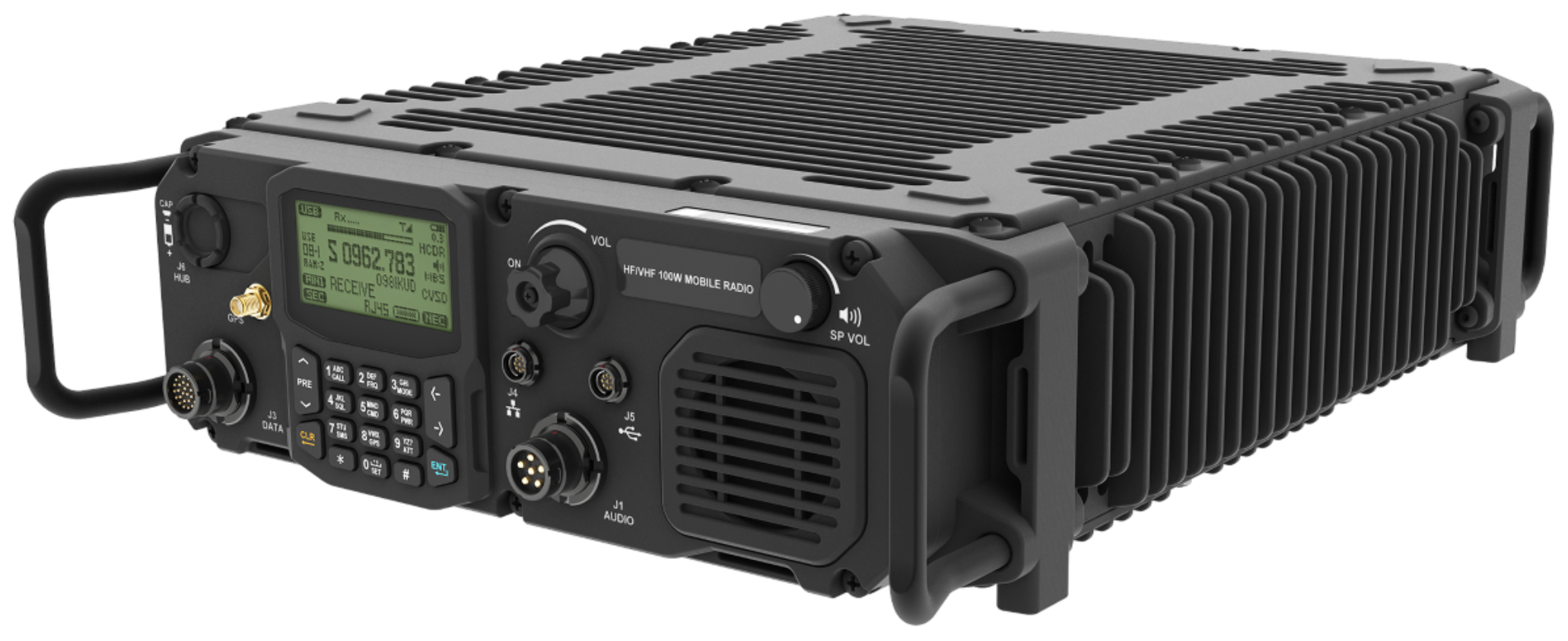

GR-8100MS HF/VHF 100W Mobile Radio
High Performance HF/VHF Mobile Radio!
[Key Features]
Easy-to-use Mobile Radio
3G Automatic Link Establishment
Wideband Waveform
Embedded Applications
Bluetooth/RS-232C/Ethernet
The Glocom GR-8100MS HF/VHF 100W mobile radio system reaches the highest level in wideband data performance to deliver information superiority on today’s battlefields. As a mobile version of GR-8100MS HF/VHF 100W Mobile Radio, it provides 100W HF and 50W VHF, and bandwidths from 3 to 24 kHz - with data rates of up to 51.2kbps. Providing advanced features in a form that’s more compact and lighter than previous HF 100W mobile radio, the GR-8100MS enables today’s warfighter to take on tomorrow’s missions.
Easy-to-use Mobile Radio
Installation of GR-8100MS HF/VHF 100W Mobile Radio Set is quite simple so that users complete in several minutes. Compared to GR-8100MS HF/VHF 100W Mobile Radio, switching frequency band is handy, and replacement of HF/VHF antenna is not needed. Glocom also provides installation kit for users to easily and simply install, conveniently use the radio set for voice&data communication.

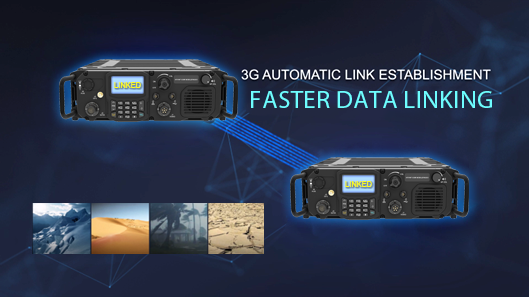

3G Automatic Link Establishment (3G ALE)
The radio features high-performance 3G Automatic Link Establishment which supports reliable linking even under the challenging channel conditions. Even if you have no experience in HF communication, this radio allows you easily search the open channel band and fastly establish a reliable link for high-speed data transmission. If available, 3G ALE and data link protocols search clear band of up to 24kHz and provide fast, error-free data transfer of 51.2kbps data rate in the extreme terrain and radio environment.
Embedded Applications
GR-8100MS HF/VHF 100W Mobile Radio provides embedded applications such as blue force tracking(BFT), SMS messaging and signal intelligence.
■Blue Force Tracking
The radio also includes enhanced internal GPS providing automatic position reporting for full situational awareness. The embedded GPS receiver ensures accurate Position Location Information for enhanced Situational Awareness.
■SMS Messaging

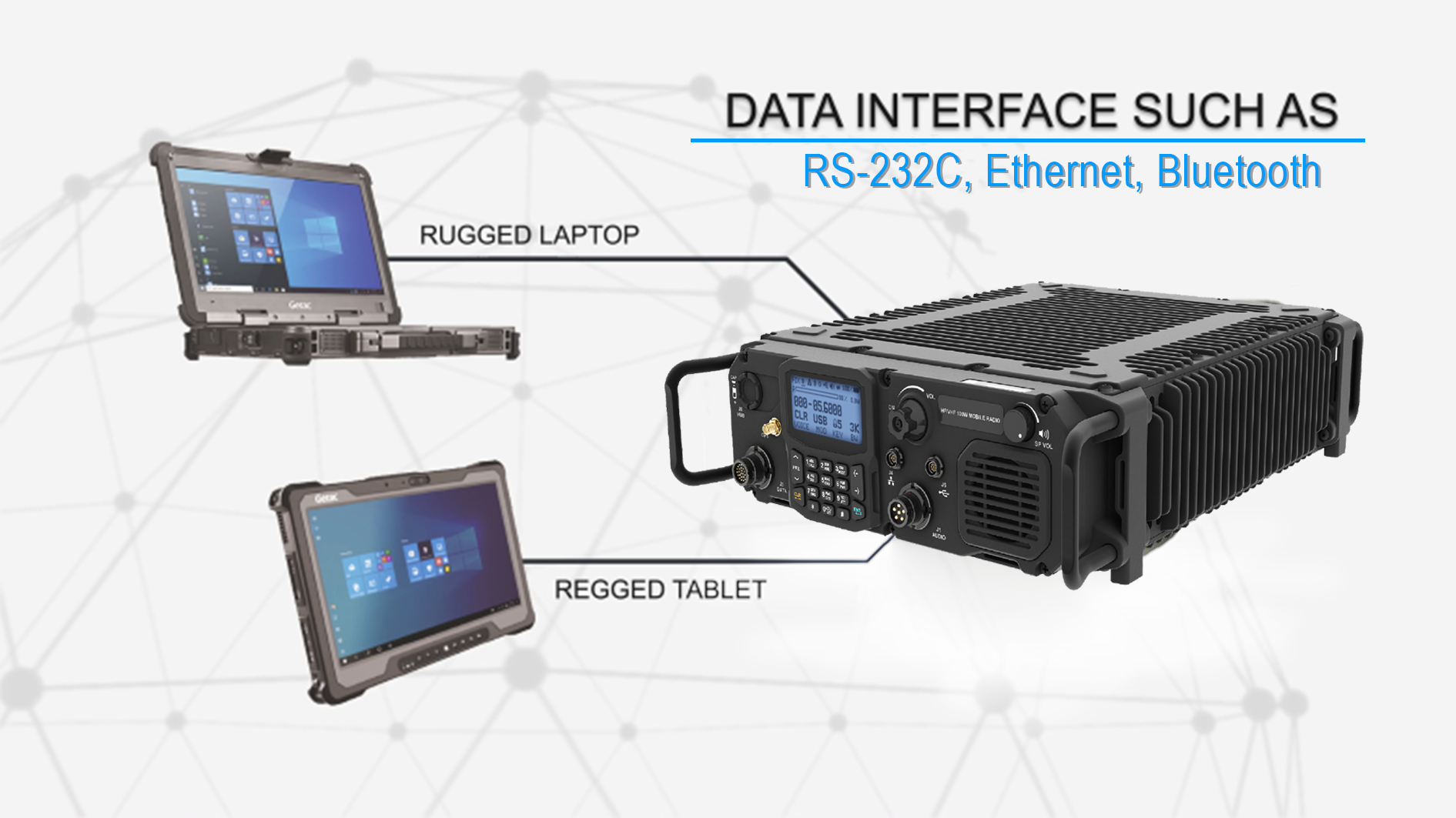

Embedded SMS messaging makes it easy to send/receive messages between soldiers without any assistant Windows/Android applications. The radio also provides various types of data interface such as RS-232C, Ethernet and Bluetooth enabling users to use various types of data terminals including rugged PC and tablet for tactical data communication.
■Signal Intelligence
GR-8100MS’s powerful anti-jamming ability provides soldiers with free channel search under extreme radio environment with the help of its embedded signal intelligence.
The officer handset is a high-grade, lightweight MIL handset for use with the Glocom tactical radio systems. One handset is supplied with each radio.
Head-mount, single left earphone, designed for extended wear in active environments, ultra lightweight frame, superior comfort and fit
This speaker microphone amplifies radio audio output for manpack, vehicular and base station applications. It can be connected to audio jack on manpack radio.
This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting or screw mounting. It's useful for mobile application with GR series radios.
This antenna can be used for communication on actual combat. This antenna is used for stationary HF radio set or long distance emergency communication.

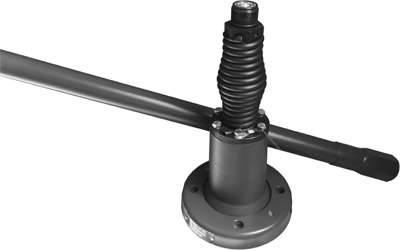

This is HF mobile communication antenna. The antenna is composed of three parts. The antenna is light weight, good flexibility, endurable for corrosion.
This is VHF mobile communication antenna. The antenna is composed of three parts. The antenna is light weight, good flexibility, endurable for corrosion.

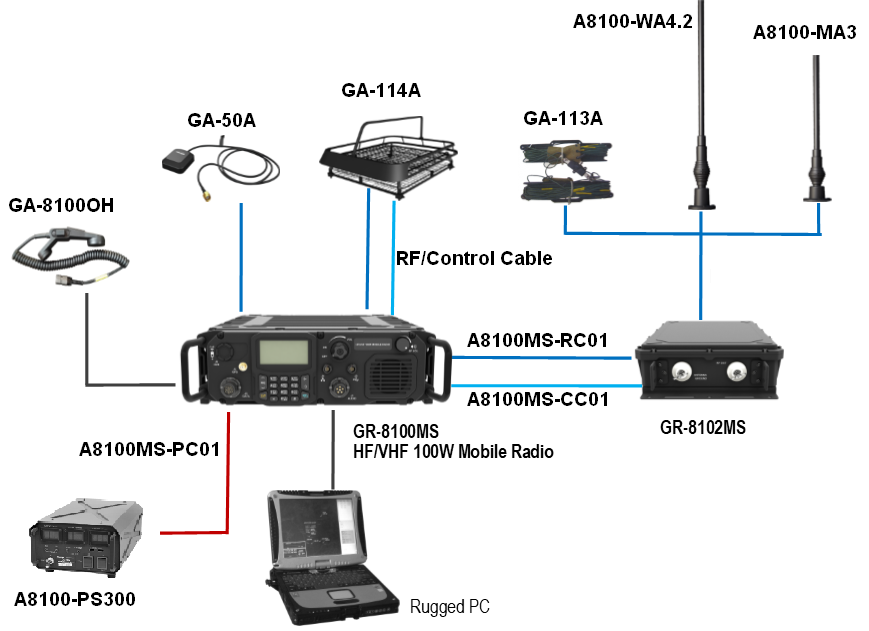

This is a set of 100W automatic tuning unit system. It includes 100W automatic tuning unit, RF cable, control cable, antenna cable etc. It will be installed in pair of GR-8100MS 100W mobile radio system.

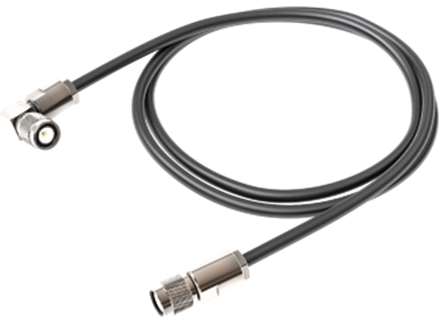

This is the RF cable connected between GR-8100MS and GR-8102MS. RF signal is sent from GR-8100MS to GR-8102MS via this cable.
This cable is power cable for GR-8100MS. This cable is connected with 27V DC power supply.
This cable is the control cable connected between GR-8100MS and GR-8102MS. GR-8100MS controls GR-8102MS via this cable.
This is 320W AC-DC/DC-DC converter to supply power into GR-series mobile radio system. It supports very high efficiency, over-voltage protection, polarity protection.
This is a set of mobile installation kit. It can be used to install GR series radio system into various kind of vehicles, ships or stationary. It is very simple to install or uninstall on the vehicles.
Earth braid, 1.5m.
This speaker microphone amplifies radio audio output for manpack, vehicular and base station applications. It can be connected to audio jack on manpack radio.
This is RS-232C data communication cable for GR8000 series radios. It is used for data communication, radio programming and radio control by computer etc.
This cable is the Ethernet cable to connect radio and Ethernet port or network hub.
This is mobile antenna which radiates NVIS propagation. It is designed to realize the communication during movement and effectively solve the problem of "communication blind area" in near distance of HF band.
This is a user manual for GR- 8100MS 100W mobile radio system.
This software application allows user to enter frequency, mode, encryption code, ALE network information and other parameters into a Windowsbased computer program and save it to a file.
This software application provides reliable exchange of text messages, files and pictures through networked data terminals.
