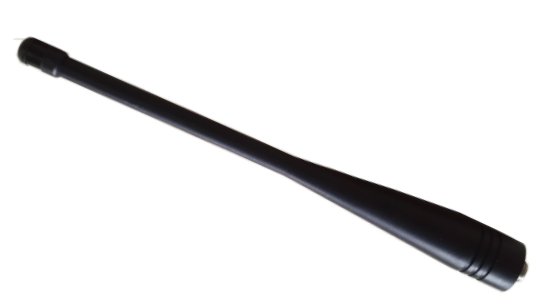

Whip Antenna(A611E-WA01)
Frequency range:420~570MHz, Gain:≥-1dBi, VSWR:≤1.5:1 Typical, Impedance:50Ω, Female SMA, 3W, Length: ≤21cm
GR-611E Secure Personal Radio
Reliable and Secure Connectivity for Every Soldiers
[Key Features]
Ad-hoc Networking
Live Video Streaming over the Network
Advanced Soldier Audio Features
Embedded Applications
Bluetooth/RS-232C/RS-422
GR-611E Secure Personal Radio (SPR) is designed specially to meet the unique demands of providing secure and reliable voice, data, video and situational awareness at soldier level. Optimized for maximum performance across the highly variable environments where soldiers operate in, and enabling range extending networks, GR-611E ensures reliable connectivity between squad members and command level under extreme communication conditions in battlefield. GR-611E extends the communication range with multi-hop relay function and provides TDMA Ad-Hoc networking, simultaneous voice and data transmission, high data rate up to 1Mbps enabling video transmission. It’s unique ability is jam resistance with technology of DSSS and frequency hopping. All transmissions are secured by built-in 256-bit AES encryption algorithm. The radio is data-enabled and incorporates a built-in GPS receiver, allowing easy-to-use blue force tracking. Bluetooth data interface allows connection to Android—mobile devices for enhanced data applications. The SPR - reliable and secure connectivity for every soldier, is assured by Glocom.
Ad-hoc Networking
Self-forming, self-healing multi-hop TDMA network is one of the key advantages of GR-611E radio, enabling soldiers join the network in challenging urban and tactical environments. Its unique technology allows high survival connectivity between dismounted soldiers in situation where traditional backbone is not available or out of reach. Up to 4-hop automatic voice & data relaying efficiently extends the coverage in the battlefield enhancing seamless connectivity for dismounted soldiers. Scalable networking is unique quality of GR-611E, the network size can be modified up to 30 by flexible behavior, maximizing throughput of the network.

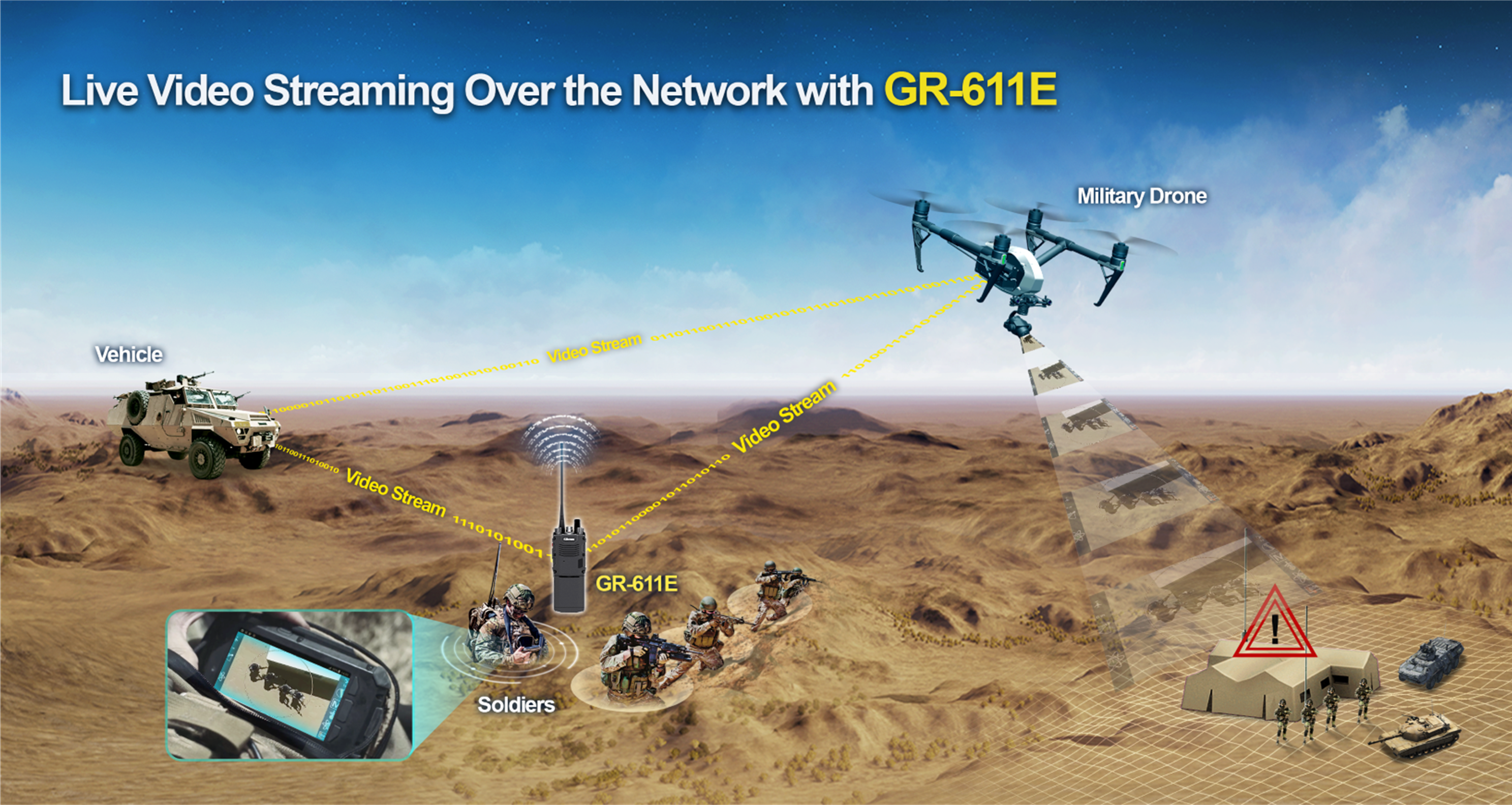

Live Video Streaming over the Network
GR-611E provides full-motion video services on the move. Even in challenging urban and tactical environments, GR-611E can easily transmit mission-critical voice, data, imagery and video, providing dismounted operators with access to real-time intelligence for increased situational awareness. 2-hop relayed video streaming allows operators in headquarters, 10km away from the battlefield, get real-time COP and support soldiers at edge to quickly make critical decisions for combat effectiveness.
Advanced Soldier Audio Features
GR-611E provides advanced soldier audio features including full-duplex voice communication and VOX (voice operated switch) for soldiers.
■Full-duplex voice communication is implemented by advanced echo-cancellation technology, enabling soldiers conveniently talk and listen at the same time. ■VOX function provides users hands free operation while voice communication.
Embedded Applications
GR 611E radio provides embedded applications such as automatic position reporting, visual network topology and network monitoring.
■Position Reporting
With the help of near-real-time automatic position reporting, you will always get soldiers locations on the connected Android/Windows unit display and improve co-operation behavior, increasing combat effectiveness.
■Visual Network Topology
Radios always capture the network topology and display bridging information on the connected Windows/Android application interface.
■Network Monitoring
Network monitoring function allows users analyse radio environment such as surrounding noise level and connection quality. This has a potential to assist in communication planning during tactical operations.
[Applications]
Special Forces/Frontline Soldiers
National Security/Police
Guards/VIP Protection
Frequency range:420~570MHz, Gain:≥-1dBi, VSWR:≤1.5:1 Typical, Impedance:50Ω, Female SMA, 3W, Length: ≤21cm
This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug. It's useful for mobile application with GR series radios.
Li-Ion, Voltage:3.3V~4.2V(3.7V Nominal), Capacity:12000mAh, Max. load current:1A, Charging time:Max. 360 minutes, Protection by enclosure Waterproof
Charging time:6 hours. Input:100~240VAC/0.45A, Socket:USB
This is user manual for GR-611E SPR.
Tactical headset adopts structure of head ring soft strap, it is audio terminal. It has the features of small in dimension, light in weight, good water proof performance, high environment adaptability.
The lightweight carry pouch is made of durable Cordura fabric and incorporates Molle straps for attachment to a variety of load-bearing vests and other gear. The radio is held securely in the holster to prevent accidental loss.

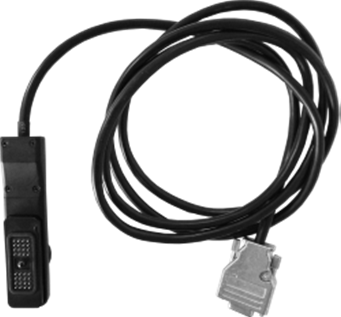

This is RS-485 data communication cable for GR-611E radio. It is used for data communication, radio programming and radio control by computer etc.
This is RS-232C data communication cable for GR-611E radio. It is used for data communication, radio programming and radio control by computer etc.
This software application provides video streaming through data terminals.
